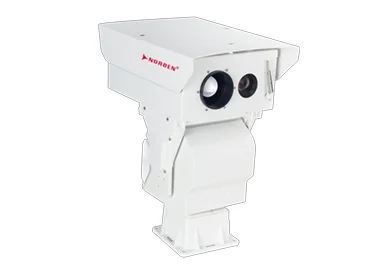

2MP IP Dual Sensor Temperature Detection Thermal PTZ Camera with Visible Lens of 30X Optical Zoom and Thermal Imaging Camera with 400*300 Thermal Resolution and SD Card Slot Support
Brand: Norden
Part # ENC-HHP5Z-30X-37
Condition: New
Availability: In Stock
Description
| MODEL |
Model No. |
ENC-HHP5Z-30X-37 |
|
Type |
IP DUAL SENSOR THERMAL PTZ CAMERA |
|
|
THERMAL CAMERA |
Detector Type | Uncooled VOx Focal Plane Arrays |
| Effective Pixels | 400×300 and Image can be scaled up to 704×576 | |
| Pixel Size | 17um | |
| Thermal Sensitivity (NETD) | ≤40 mK | |
| Spectral Range | 8~14um | |
| Image Settings | Brightness, Sharpness, Contrast, 3D DNR, Mirror / Flip, FFC | |
| Color Palettes | White & Black Hot, Ironbow, Rainbow etc. up to 17 modes | |
| Iris | Auto Fixed IRIS | |
|
THERMAL LENS |
Lens |
Fixed |
|
Focus Control |
Motorized Focus | |
| Focal Length | 25/50/75/100 mm | |
| F No | F1.0 | |
| Angle of View | 25 mm: 15.4°(H), 11.6° (V)
50mm: 7.7° (H), 5.8° (V) 75 mm: 5.1° (H), 3.8° (V) 100 mm: 3.8° (H), 2.3° (V) |
|
| Detection | 25 mm: Human(1.8mx0.5m) – 735 m, Vehicle(4.0mx1.5m) – 2255 m
50 mm: Human(1.8mx0.5m) – 1469 m, Vehicle(4.0mx1.5m) – 4510 m 75 mm: Human(1.8mx0.5m) – 2203 m, Vehicle(4.0mx1.5m) – 6765 m 100 mm: Human(1.8mx0.5m) – 2937 m, Vehicle(4.0mx1.5m) – 9020 m |
|
| Recognition | 25 mm: Human(1.8mx0.5m) – 184 m, Vehicle(4.0mx1.5m) – 564 m
50 mm: Human(1.8mx0.5m) – 367 m, Vehicle(4.0mx1.5m) – 1127 m 75 mm: Human(1.8mx0.5m) – 551 m, Vehicle(4.0mx1.5m) – 1691 m 100 mm: Human(1.8mx0.5m) – 734 m, Vehicle(4.0mx1.5m) – 2255 m |
|
| Identification | 25 mm: Human(1.8mx0.5m) – 92 m, Vehicle(4.0mx1.5m) – 282 m
50 mm: Human(1.8mx0.5m) – 184 m, Vehicle(4.0mx1.5m) – 564 m 75 mm: Human(1.8mx0.5m) – 275 m, Vehicle(4.0mx1.5m) – 846 m 100 mm: Human(1.8mx0.5m) – 367 m, Vehicle(4.0mx1.5m) – 1127 m |
|
| Fire Detection | 25 mm: Fire(0.2mx0.2m) – 147 m, Fire (1.0mx1.0m) – 735 m
50 mm: Fire(0.2mx0.2m) – 294 m, Fire (1.0mx1.0m) – 1471 m 75 mm: Fire(0.2mx0.2m) – 441 m, Fire (1.0mx1.0m) – 2206 m 100 mm: Fire(0.2mx0.2m) – 588 m, Fire (1.0mx1.0m) – 2941 m |
|
|
VISIBLE CAMERA |
Image Sensor | 1/1.8″ Sony CMOS |
| Max Resolution | 2592 x 1520 | |
| Focal Length | 6.8 ~ 251 mm | |
| Focus Control | Auto/Semi-Auto/Manual | |
| Angle of View (H) | 60.7° ~ 2.3° | |
| Angle of View (V) | 36.8° ~ 1.3° | |
| Angle of View (D) | 70.9° ~ 2.6° | |
| Max Aperture | F1.5 ~ F4.8 | |
| Optical Zoom | 30x | |
| Digital Zoom | 16x | |
| Electronic Shutter | 1s ~ 1/100,000s, Auto/Manual | |
| Min. illumination | Color:0.001 lux @ F1.5, B/W:0.0001 lux | |
| AGC | Auto / Manual | |
| Defog | Smart Defog | |
| S/N Ratio | ≥55dB | |
| WDR | 120dB | |
|
VIDEO |
Video Compression |
Enhanced (H.265, H.264), H.265, H.264, MJPEG |
|
Frame Rate |
Main Stream: Thermal: (704×576 ) @25/30fps; Visible: (2592×1520, 2304×1296, 1920×1080, 1280×720) @25/30fps
Sub Stream: Thermal: (352×288) @25/30fps; Visible: (704×576, 640×480, 352×288) @25/30fps |
|
| Stream Settings | i-Frame, PAL/NTSC, Frame Rate | |
| Bit Rate Control | CBR, VBR | |
| Bit Rate | Thermal: 10Kbps ~ 6Mbps
Visible: 100Kbps ~ 16Mbps |
|
| BLC | Supported | |
| HLC | Supported | |
| OSD | Up to 8 regions | |
| OSD Type | Title, Week, Date, Time, Text with different colors and adaptable sizes (Small / Medium / Big), Image overlay | |
| ROI | Up to 8 regions | |
| Privacy Masking | Up to 4 regions | |
|
AUDIO |
Audio Compression | G.711A, G.711U, RAW_PCM |
| Audio Bitrate | 64 kbps, 128 kbps | |
| Audio I/O | 2/2 | |
|
SMART |
Behaviour Detection |
Thermal/Visible: Intrusion (Perimeter), Crossline (Tripwire), Double Crossline (Double Tripwire) |
|
Intelligent Identification |
Thermal/Visible: Loitering
Thermal: Region Entry / Exit Detection, Flame Point Detection Visible: Smoke Detection, Flame Detection |
|
| Statistical Analysis | Thermal/Visible: People Counting, Wrong Way Detection, Human and Vehicle Detection, Temperature Detection Visible: Face Detection | |
| Alarm Management | Motion Detection, Tampering Alarm, Disk Full Alarm, Temperature Alarm, Input / Output Alarm, Network Alarm | |
| Alarm Notification | E-mail (Notification & Snapshot), HTTP (Alarm icon), FTP (Snapshot & Recording), SD Card (Recording) | |
|
TEMPERATURE |
Detection Mode | Spot, Line, Area (Total 20 Rules – 1 Full Screen and 19 others) |
| Alarm | Over/Difference Alarm | |
| Accuracy | ±2℃ / ±2% | |
| Response Time | ≤ 30ms | |
| Measurement range | -20°C ~ 150°C (-4°F to 302°F) | |
|
INTERFACE |
Protocols |
TCP/IP, UDP, IPv4, IPv6, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP/RTCP, RTSP, PPPoE, NTP, UPnP, SMTP, IGMP V2/V3, 802.1x, QoS, Unicast, Multicast, SNMP, ARP, SSL / TLS 1.2 |
|
Security |
AES 128/256 Encryption, IP Filter, User Authentication (Multiple Privilege Level), HTTPS Authentication, Digest Authentication, User Access Log | |
| Compatibility | ONVIF (Profile S, G, T, M), CGI/SDK | |
| Network | 1xRJ45 10M/100M Self Adaptive Ethernet Port | |
| Serial Interface | 1xRS485 | |
| BNC | Supported | |
| Edge Storage | SD Card Slot, Up to 512 GB | |
| Alarm I/O | 9/4 | |
| Heater & Blower | Supported (Optional) | |
| Max.User | 32 | |
| Wiper | Supported | |
| Client Application | EyeGuard | |
|
PAN AND TILT |
Pan Range | 0° ~ 360° (Endless) |
| Pan Speed | Pan Manual Speed: 0.01° ~ 60°/s, Pan Preset Speed: 60°/s | |
| Tilt Range | -75° ~ +40° | |
| Tilt Speed | Tilt Manual Speed: 0.01° ~ 30° /s, Tilt Preset Speed: 30°/s | |
| Preset Accuracy | ±0.2° | |
| Number of Presets | 400 | |
| Power off Memory | Supported | |
| 3D Position | Supported | |
| PTZ Mode | 8 Scan, 6 Track, 12 Patrols (32 Presets per Patrol) | |
| Speed Setup | Auto/Manual (0-8) | |
|
GENERAL |
Power Supply |
36V DC |
|
Max. Power consumption |
≤100 W | |
| Working Temperature | -40 °C ~ 70 °C | |
| Working Humidity | ≤95% RH | |
| Casing | Metal | |
| Ingress Protection | IP67 | |
| Vandal Resistant | IK10 (Housing) | |
| Surge Protection | TVS6000V | |
| Reset Button | Supported | |
| Dimensions | 25/50/75mm Lens: 293 × 420 × 520 mm
100 mm Lens: 333 × 490 × 550 mm |
|
| Net Weight | 25/50/75mm Lens: 26 Kg
100mm Len: 28 Kg |
