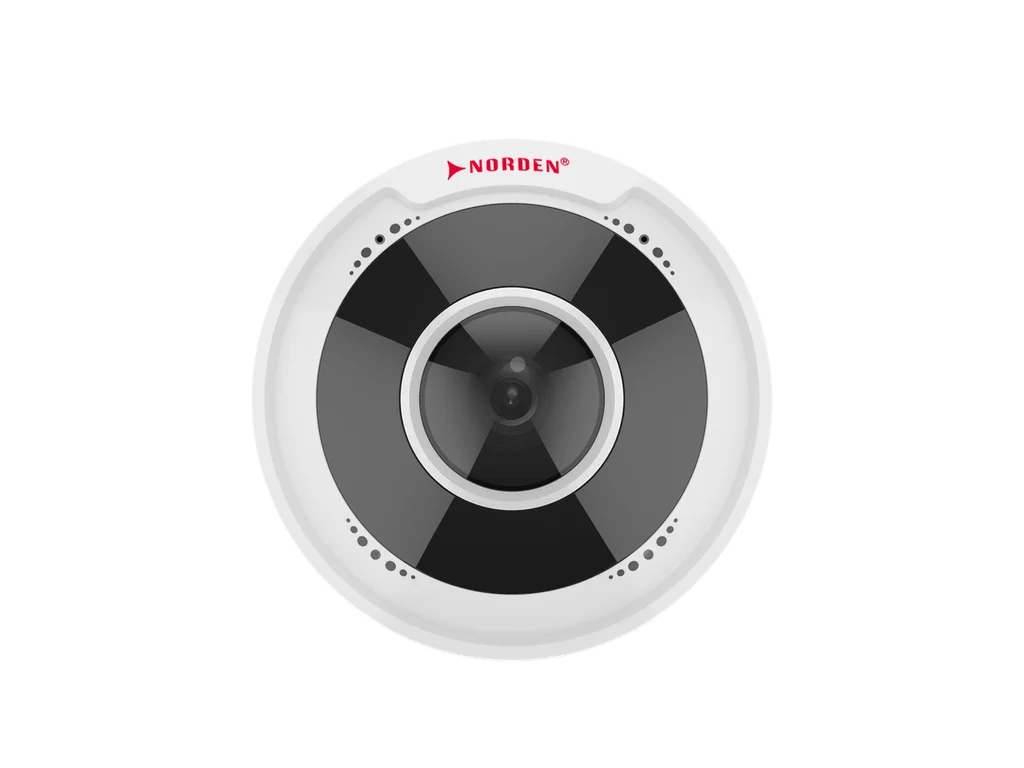

5MP IR IP H.265 Vandal Proof Hemispheric Dome camera with 1.4mm Fixed Fisheye Lens, PoE, SD card slot, 10m IR support and Built-in Mic

5MP IR IP H.265 Vandal Proof Hemispheric Dome camera with 1.4mm Fixed Fisheye Lens, PoE, SD card slot, 10m IR support and Built-in Mic

Brand: Norden

Part # ENV-HVD8H-10R-17

Condition: New

Availability: In Stock

Category Brand:

Description

MODEL

Model No.

 ENC-HBU7Z-150R-43

Type

5MP FISHEYE FIXED DOME CAMERA

CAMERA

 Sensor 1/2.8″, CMOS Progressive 5.0 MegaPixel
Day/Night IR Cut Filter with Auto Switch
Lens 1.4 mm
Focus Fixed
Detection distance 31.5 m
Observation Distance 12.6 m
Recognition Distance 6.3 m
Identification Distance 3.2 m
Angle of View 360°
Minimum Illumination 1s ~ 1/100000s, Auto/Manual
AGC Color: 0.01 lux @ F2.0; B/W:0 lux with IR
S/N Ratio Auto / Manual
Smart IR >55 dB
Wavelength Up to 10 m
Defog Smart Defog
WDR 120 dB

VIDEO

Max. Resolution

 2592×1944

Video Compression

 H.265+, H.265, H.264, MJPEG
Frame Rate Main Stream: 5MP(2592×1944) @ 30fps , Sub Stream: 1080P(1920×1080), 720P(1280×720) @ 30fps , Third Stream: D1 (720×576), (640×360), 2CIF(704×288), CIF(352×288) @ 30fps
Display Mode Up to 11 modes (Software Decoding) Ceiling mount: fisheye view, 360°Panoramic+1PTZ, 180°Panoramic, Fisheye+3PTZ, Fisheye+4PTZ, 360°Panoramic+6PTZ, Fisheye+8PTZ Wall mount: fisheye view, Panoramic, Panoramic+3PTZ, Panoramic+4PTZ, Panoramic+8PTZ
Stream Settings i-Frame, PAL/NTSC, Frame Rate
Video Bit Rate 128 Kbps ~ 16 Mbps
Bitrate Type CBR, VBR
Image Settings Brightness, Saturations, Contrast, Sharpness, 2D/3D Noise Reduction, Image Rotation, Exposure
White Balance Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto 2
HLC N/A
BLC Supported
OSD Up to 8 areas
ROI Up to 8 areas
Privacy Mask Up to 4 areas
De-warping N/A
Heatmap Supported

AUDIO

 Audio Compression G.711U, G.711A
Audio Bit Rate 64 kbps
Two Way Audio Supported
 Audio I/O 1/1
Sampling Rate 8KHZ
Audio Voltage 1 Input: impedance 35kΩ; amplitude 2V [p-p] 1 output: impedance 600Ω; amplitude 2V [p-p]
Built-in Mic 2 Mic Supported

SMART

Behavior Detection

 Audio detection, Motion Detection
Statistical Analysis

 Heat map
General Function Watermark, IP Address Filtering, Tampering Alarm, Alarm Input / Output, Access Policy, ARP Protection, RTSP Authentication, User Authentication

INTERFACE

 Protocols TCP/IP, UDP, IPv4, IPv6, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTCP, RTSP, RTMP, PPPoE, NTP, UPnP, SMTP, IGMP, 802.1x, QoS, NFS, SNMP, ARP, SSL/TLS 1.2
Security User Authentication, IP Filter, HTTPS Encryption, RTSP Authentication, Digest Authentication (RTSP/HTTP/ONVIF), TLS 1.2, WSSE (ONVIF), ARP Protection, Input / Output Alarm, Watermark, User Access Log
Compatibility ONVIF(Profile S, G, T), API/SDK
Network 1xRJ45 10M/100M/1000M Self Adaptive Ethernet Port + 1x100M/1000M SFP (FC Simplex Pigtail)
Alarm I/O 2/1
Serial Interface 1xRS485
Video Output Supported
Built-in Speaker Supported
Edge Storage Micro SD card slot, up to 256 GB
Network Storage Supported
Web Client Pig Tail
Max. User 32
Client Application Eyenor VMS

GENERAL

Power

 DC 12V , PoE (IEEE 802.3af)
Max. Power Consumption

 8.5 W
Mount Type Table, Wall , Ceiling
Working Temperature -30°C ~ 60°C
Working Humidity ≤95% RH (non-condensing)
Ingress Protection IP66
Vandal Resistant IK10
Surge Protection TVS4000V
Reset Button Supported
Dimensions Φ125 × 43.7 mm
Weight 0.36 kg
