Brand APC
Part No #: 640va-203v
Condition: New
Avaiablity: InStock

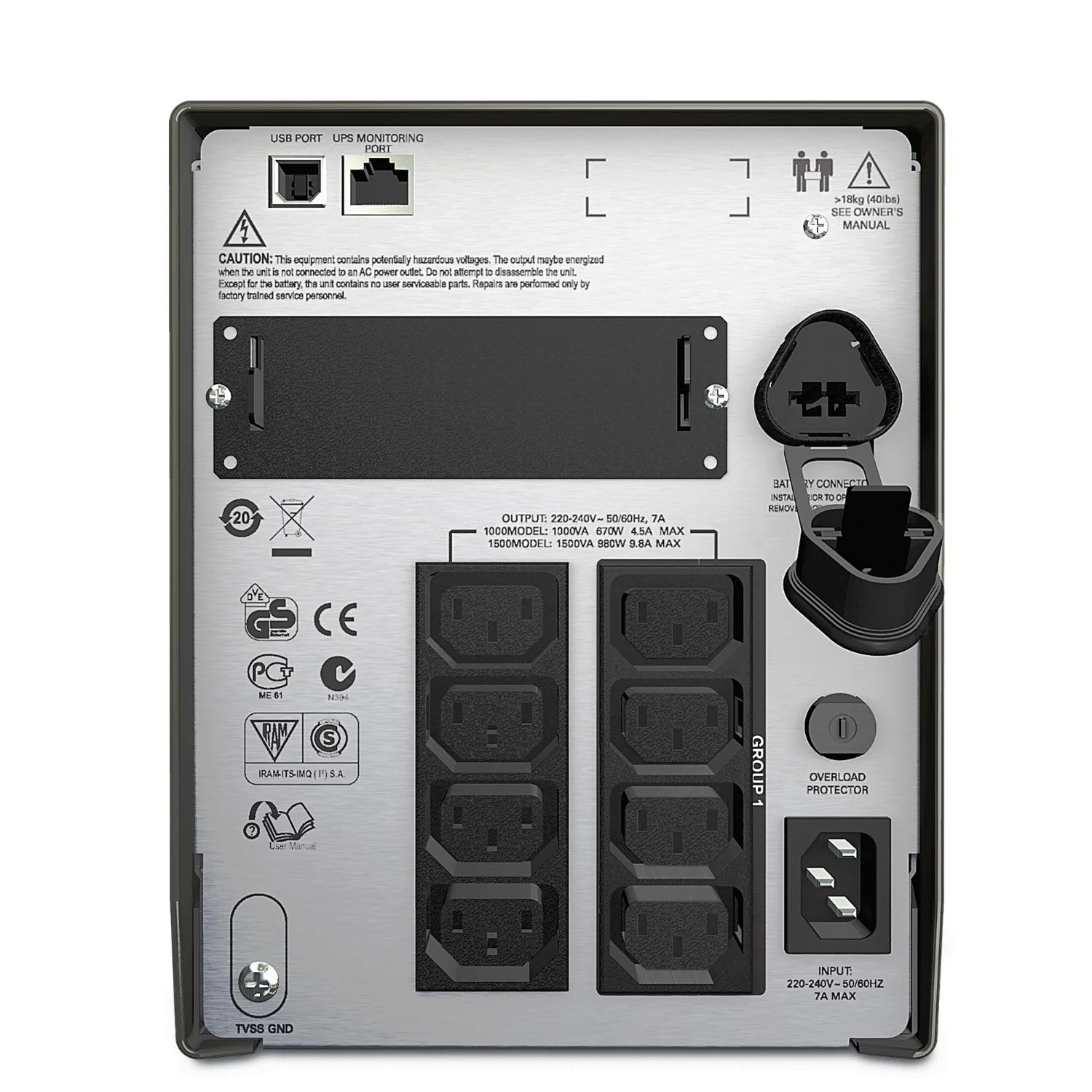

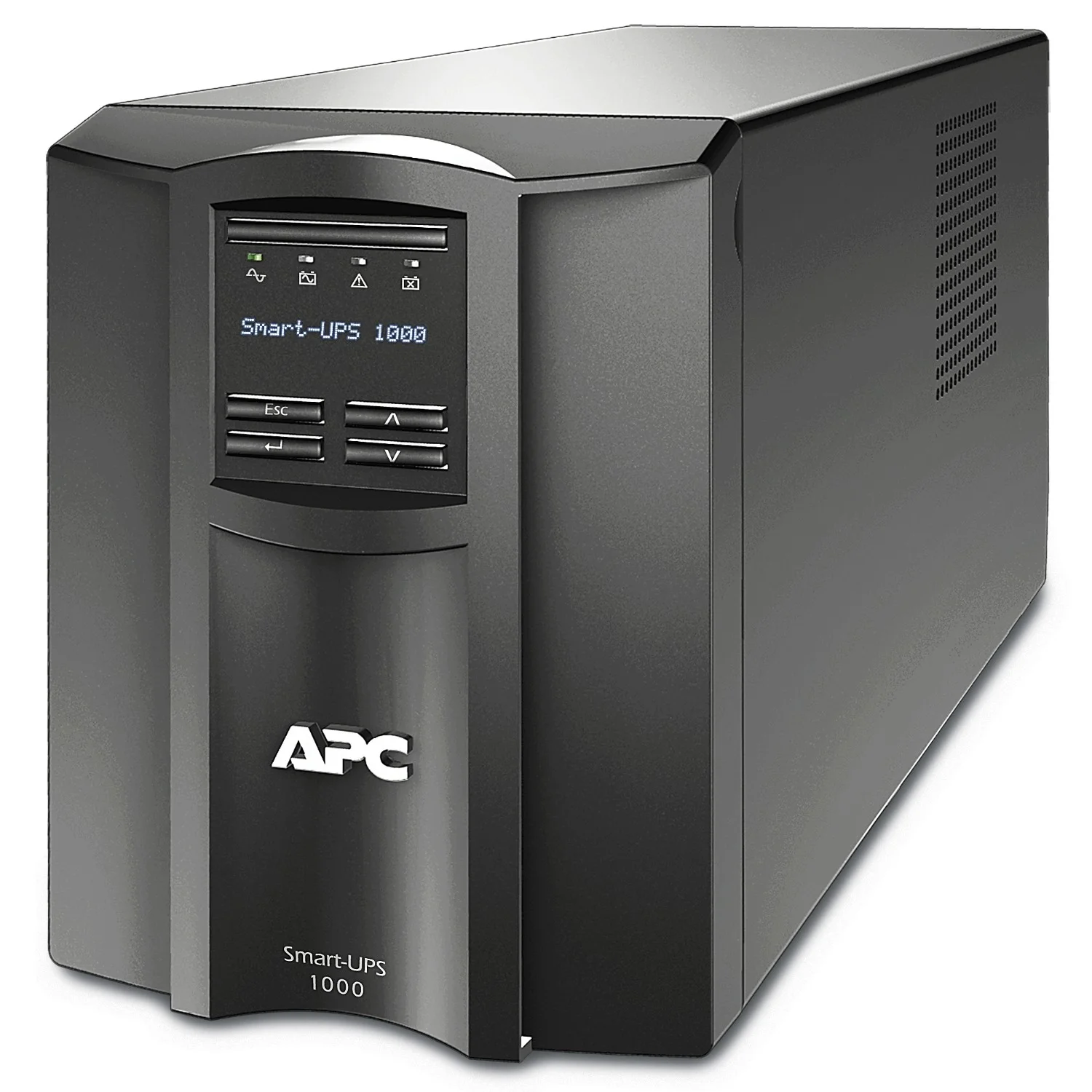

This product is part of the Smart-UPS range, an intelligent and efficient network power protection offer from entry-level to scalable runtime. This 1000VA/600W line-interactive UPS provides pure sine wave power to support critical electronics during power disruptions. The tower mount SMC has a SmartConnect port for cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and email notifications with recommended actions. The PowerChute Business Edition provides unattended shutdown of servers and workstations via serial or USB cables. It comes with IEC 320 C14 input and 8x IEC 320 C13 outlets. This UPS has built-in lead-acid battery and is covered by a 2-year UPS warranty. Its dimensions are 439mm (depth) x 219mm (height) x 171mm (width) and weighs 17.27kg. Ideal for entry-level servers, networks, business VoIP, retail point-of-sale, edge networks and business desktops. It conforms to CE, GOST, VDE, and UL 1778. Designed for small offices or small business owners to maintain a core network and business communication.
| Main | |
| Run time for load
W information_stroke Min-max: 60-600 W |
5min 21s |
| Max. Capacity Used
information_stroke |
100 % |
| Product or component type | Uninterruptible power supply (UPS) |
| Complementary | |
| Communication port type | SmartConnect Ethernet port |
| Software package | SmartConnect software for remote power monitoring feature availability varies by terms of use |
| Batteries & Runtime | |
| Run Time | View Runtime Graph |
| Efficiency | View Efficiency Graph |
| Battery type | Lead-acid battery |
| Battery voltage | 24 V |
| Extended runtime | 0 |
| Battery capacity | 9 Ah |
| Number of battery filled slots | 0 |
| Number of battery free slots | 0 |
| Battery recharge time | 3 h |
| Number of battery replacement quantity | 1 |
| Battery life | 3…5 year(s) |
| Replacement battery | APCRBC142
|
| Battery charger power | 56 W rated |
| General | |
| Provided equipment | Power cord USB cable |
| Number of power module | 0 |
| Number of power module filled slots | 0 |
| Number of power module free slots | 0 |
| product web sub-family | Cloud-enabled monitoring |
| Redundant | No |
| Physical | |
| Colour | Black |
| Height | 21.9 cm |
| Width | 17.1 cm |
| Depth | 43.9 cm |
| Product weight | 17.27 kg |
| Mounting location | Front |
| Mounting preference | No preference |
| Mounting mode | Not rack-mountable |
| Two post mountable | 0 |
| USB compatible | Yes |
| Input | |
| Main Input Voltage | 230 V |
| Other Input Voltage | 220 V 240 V |
| Input Connection Type | IEC 320 C14 |
| Input voltage limits | 170…300 V adjustable 180…287 V |
| Network frequency | 50/60 Hz +/- 3 Hz auto-sensing |
| Output | |
| Main Output Voltage | 230 V |
| Other Output Voltage | 220 V 240 V |
| Rated power in W | 600 W |
| rated power in VA | 1000 VA |
| output connection type | 8 IEC 60320 C13 |
| Harmonic distortion | Less than 5 % |
| Maximum configurable power in VA | 1000 VA |
| Maximum configurable power in W | 600 W |
| Transfer time | 6 ms typical : 10 ms maximum |
| UPS type | Line interactive |
| Wave type | Sine wave |
| Output frequency | 50/60 Hz +/- 3 Hz sync to mains |
| Conformance | |
| Product certifications | CE GOST VDE UK PSTI |
| Standards | EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018 |
| Environmental | |
| Acoustic level | 41 dBA |
| Heat dissipation | 100 Btu/h |
| Operating altitude | 0…10000 ft |
| Ambient air temperature for operation | 0…40 °C |
| Ambient air temperature for storage | -15…45 °C |
| Storage altitude | 0…15240 m |
| Relative humidity | 0…95 % |
| Storage Relative Humidity | 0…95 % |
| Communications & Management | |
| control panel | Multifunction LCD status and control console |
| Free slots | 0 |
| Communication port support | SmartConnect Ethernet port: for cloud monitoring feature availability varies by terms of use |
| Alarm | Alarm when on battery : distinctive low battery alarm : configurable delays |
| Surge Protection and Filtering | |
| Surge energy rate | 455 J |
| Noise suppression | Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 37.6 cm |
| Package 1 Width | 59.5 cm |
| Package 1 Length | 32.8 cm |
| Package 1 Weight | 19.55 kg |
