Part No #: SMT1000RMI2U
Condition: New
Avaiablity: InStock

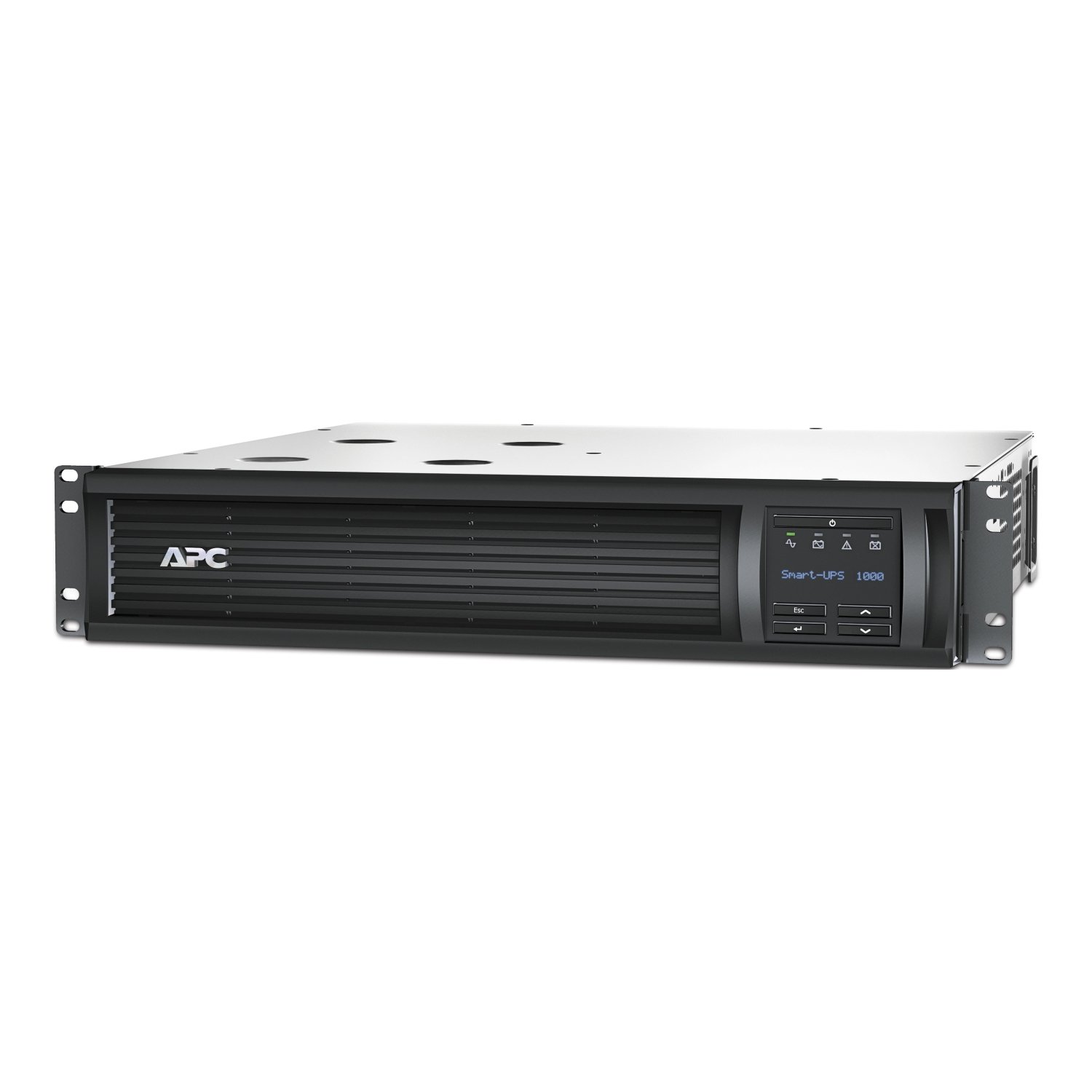

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 1000VA line interactive 2U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with IEC 320 C14 input, 4x IEC 320 C13 outlets, and 2x IEC jumper cables. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMT UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. It is compatible with a dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications.
| Main | |
| Run time for load
W information_stroke Min-max: 70-700 W |
8min 42s |
| Max. Capacity Used
information_stroke |
100 % |
| Product or component type | Uninterruptible power supply (UPS) |
| Complementary | |
| Communication port type | SmartSlot |
| Batteries & Runtime | |
| Run Time | View Runtime Graph |
| Efficiency | View Efficiency Graph |
| Battery type | Lead-acid battery |
| Additional information | Configurable for 220 : 230 or 240 nominal output voltage |
| Extended runtime | 0 |
| Number of battery filled slots | 0 |
| Number of battery free slots | 0 |
| Battery recharge time | 3 h |
| Number of battery replacement quantity | 1 |
| Battery life | 4…6 year(s) |
| Replacement battery | APCRBC132
|
| Battery charger power | 112 W rated |
| General | |
| Provided equipment | USB cable Documentation CD Installation guide Rack mounting support rails Smart UPS signalling RS-232 cable |
| Number of power module | 0 |
| Number of power module filled slots | 0 |
| Number of power module free slots | 0 |
| Redundant | No |
| Physical | |
| Number of rack unit | 2U |
| Number of cables | 1 |
| Colour | Black |
| Height | 8.5 cm |
| Width | 48 cm |
| Depth | 47.5 cm |
| Product weight | 28.18 kg |
| Mounting location | Front |
| Mounting preference | Lower |
| Mounting mode | Rack-mounted |
| Two post mountable | 0 |
| USB compatible | Yes |
| Input | |
| Main Input Voltage | 230 V |
| Other Input Voltage | 220 V 240 V |
| Input Connection Type | IEC 320 C14 |
| Input voltage limits | 151…302 V adjustable 160…286 V |
| Network frequency | 50/60 Hz +/- 3 Hz auto-sensing |
| Output | |
| Main Output Voltage | 230 V |
| Other Output Voltage | 220 V 240 V |
| Rated power in W | 700 W |
| rated power in VA | 1000 VA |
| output connection type | 4 IEC 320 C13 2 IEC Jumpers |
| Harmonic distortion | Less than 5 % at full load |
| Maximum configurable power in VA | 1000 VA |
| Maximum configurable power in W | 700 W |
| Transfer time | 2 ms typical |
| UPS type | Line interactive |
| Wave type | Sine wave |
| Output frequency | 47…53 Hz for 50 Hz nominal sync to mains 57…63 Hz for 60 Hz nominal sync to mains |
| Conformance | |
| Product certifications | CSA EAC RCM VDE |
| Standards | EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018 |
| Environmental | |
| Acoustic level | 45 dBA |
| Heat dissipation | 56 Btu/h |
| Operating altitude | 0…10000 ft |
| Ambient air temperature for operation | 0…40 °C |
| Ambient air temperature for storage | -15…45 °C |
| Storage altitude | 0…15240 m |
| Relative humidity | 0…95 % |
| Storage Relative Humidity | 0…95 % |
| Communications & Management | |
| control panel | Multifunction LCD status and control console |
| Emergency power off | Optional |
| Free slots | 1 |
| Alarm | Alarm when on battery : distinctive low battery alarm : configurable delays |
| Surge Protection and Filtering | |
| Surge energy rate | 459 J |
| Noise suppression | Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 25.000 cm |
| Package 1 Width | 60.000 cm |
| Package 1 Length | 60.000 cm |
| Package 1 Weight | 30.400 kg |
| Unit Type of Package 2 | PAM |
| Number of Units in Package 2 | 16 |
| Package 2 Height | 135.000 cm |
| Package 2 Width | 100.000 cm |
| Package 2 Length | 120.000 cm |
| Package 2 Weight | 501.400 kg |
