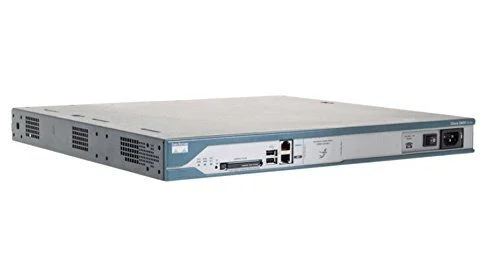

Brand: Cisco
Part # CISCO2811
Condition: New
Availability: In Stock
| Device Type | Router |
| Enclosure Type | Desktop – modular – 1U |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet |
| Network / Transport Protocol | IPSec |
| Remote Management Protocol | SNMP 3 |
| Encryption Algorithm | DES, Triple DES, SSL 3.0, 128-bit AES, 192-bit AES, 256-bit AES |
| Authentication Method | Secure Shell v.2 (SSH2) |
| Features | Modular design, firewall protection, hardware encryption, VPN support, MPLS support, wall mountable, Quality of Service (QoS) |
| Compliant Standards | IEEE 802.3af, IEEE 802.1x, CISPR 22 Class A, CISPR 24, EN 61000-3-2, VCCI Class A ITE, IEC 60950, EN 61000-3-3, EN55024, UL 60950, EN50082-1, CSA 22.2 No. 60950, AS/NZ 3548 Class A, FCC Part 15, ICES-003 Class A, EN 61000-6-2, FIPS 140-2, EN300-386, EN 60950-1 |
| RAM | 256 MB (installed) / 768 MB (max) – DDR SDRAM |
| Flash Memory | 64 MB (installed) / 256 MB (max) |
| Status Indicators | Link activity, power |
| DIMENSIONS & WEIGHT | |
|---|---|
| Width | 43.8 cm |
| Depth | 41.7 cm |
| Height | 4.5 cm |
| Weight | 6.4 kg |
| POWER | |
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| ENVIRONMENTAL PARAMETERS | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 5 – 95% |
| EXPANSION / CONNECTIVITY | |
| Interfaces | USB: 2 x 2 x 10Base-T/100Base-TX – RJ-45 Management: 1 x console – RJ-45 Serial: 1 x auxiliary – RJ-45 |
| Expansion Slots | 4 (total) / 4 (free) x HWIC 1 (total) / 1 (free) x NME 2 (total) / 2 (free) x AIM 2 (total) / 2 (free) x PVDM – SIMM 80-PIN 2 memory 1 (total) / 0 (free) x CompactFlash |
| SOFTWARE / SYSTEM REQUIREMENTS | |
| OS Provided | Cisco IOS IP Base |
