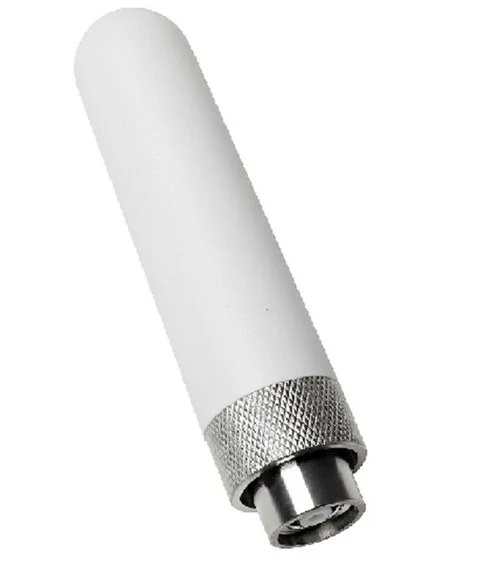

Antenna Type

Omnidirectional

Operational Frequency Ranges

2.4-2.5 GHz & 5.15-5.925 GHz

Nominal Input Impedance*

50 Ohms

VSWR*

2.0:1

Polarization

Vertical

2.4 – 2.5 GHz Nominal Peak Gain*

3 dBi

5.15 – 5.925 GHz Nominal Peak Gain*

5 dBi

2.4 – 2.5 GHz Elevation Plane Beamwidth*

35°

5.15 – 5.925 GHz Elevation Plane Beamwidth*

35°

2.4 – 2.5 GHz Port-to-Port Isolation*

> 20 dB

5.15 – 5.925 GHz Port-to-Port Isolation*

> 23 dB

Connector Type

Male RP-TNC

UV Stability

ASTM D-4674 Method 1

Diameter

1.25 in. (3.18 cm)

Height

3.3 in. (8.4 cm)

Weight

1.7 oz. (0.05 kg)

Operating Temperature Range

-30° C to 70° C

Storage Temperature Range

-40° C to 85° C
