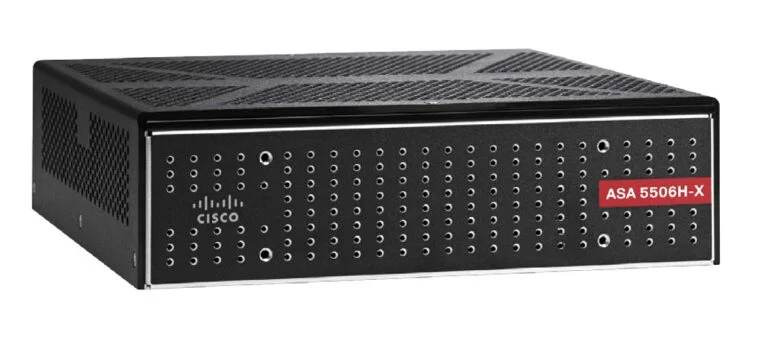

Part # ASA5506H-SP-BUN-K9
Condition: New
Availability: In Stock
| Technical details | |
|---|---|
| Rack mounting | Yes |
| Concurrent connections | 50000 |
| Heat dissipation | 75 BTU/h |
| Harmonized System (HS) code | 85176990 |
| Data transmission | |
| Maximum data transfer rate | 750 Mbit/s |
| Firewall throughput | 125 Mbit/s |
| Maximum firewall connections per second | 5000 |
| Firewall throughput | 0.125 Gbit/s |
| Performance | |
| Concurrent connections | 50000 |
| Heat dissipation | 75 BTU/h |
| Network | |
| Maximum Number of VPN connections supported | 50 |
| Wi-Fi | No |
| Number of VLANs | 30 |
| Security | |
| Security algorithms | 3DES, AES |
| Stateful Packet Inspection (SPI) | Yes |
| Management features | |
| URL filtering | Yes |
| Hard drive | |
| Storage media type | SSD |
| Storage drive interface | mSATA |
| SSD capacity | 50 GB |
| Ports & interfaces | |
| Gigabit Ethernet (copper) ports quantity | 4 |
| Connectivity technology | Wired |
| USB 2.0 ports quantity | 1 |
| Serial ports quantity | 2 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Remote management port | RJ-45 (Gigabit) |
| Memory | |
| Internal memory | 4000 MB |
| Storage | |
| Storage media type | SSD |
| Storage drive interface | mSATA |
| SSD capacity | 50 GB |
| Flash memory | 8000 MB |
| Design | |
| Rack mounting | Yes |
| Built-in fan | No |
| Power | |
| AC input voltage | 90-240 V |
| AC input frequency | 50 – 60 Hz |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Operational conditions | |
| Operating temperature (T-T) | -20 – 60 °C |
| Storage temperature (T-T) | -40 – 85 °C |
| Operating relative humidity (H-H) | 10 – 95% |
| Storage relative humidity (H-H) | 10 – 95% |
| Operating altitude | 0 – 3050 m |
| Non-operating altitude | 0 – 4572 m |
| Weight & dimensions | |
| Dimensions (WxDxH) | 230 x 230 x 69 mm |
| Weight | 3.18 kg |
| Other features | |
| Maximum data transfer rate | 750 Mbit/s |
| Firewall throughput | 125 Mbit/s |
