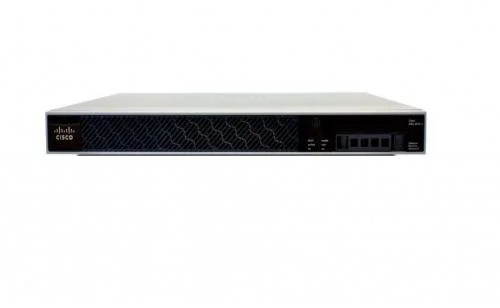

Brand: Cisco
Part # ASA5512-K9-RF
Condition: New
Availability: In Stock
| Technical details | |
|---|---|
| Rack mounting | Yes |
| Form factor | 1U |
| Concurrent connections | 100000 |
| Heat dissipation | 192 BTU/h |
| Harmonized System (HS) code | 85176990 |
| Data transmission | |
| Firewall throughput | 1000 Mbit/s |
| VPN throughput | 200 Mbit/s |
| IPS/IDS throughput | 250 Mbit/s |
| Mobile VPN SSL | 2 |
| Mobile VPN IPSec | 250 |
| Firewall throughput | 1 Gbit/s |
| VPN throughput | 0.2 Gbit/s |
| Performance | |
| Concurrent connections | 100000 |
| Certification | IEC 60950-1: 2005, 2nd Edition EN 60950-1:2006+A11: 2009 UL 60950-1:2007, 2nd Edition; CSA C22.2 No. 60950-1-07, 2nd Edition |
| Heat dissipation | 192 BTU/h |
| Network | |
| Wi-Fi | No |
| Number of VLANs | 100 |
| Security | |
| Security algorithms | 3DES, AES |
| Ports & interfaces | |
| SFP module slots quantity | 6 |
| Connectivity technology | Wired |
| USB 2.0 ports quantity | 2 |
| Serial ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 6 |
| Memory | |
| Internal memory | 4096 MB |
| Storage | |
| Flash memory | 4000 MB |
| Certificates | |
| Certification | IEC 60950-1: 2005, 2nd Edition EN 60950-1:2006+A11: 2009 UL 60950-1:2007, 2nd Edition; CSA C22.2 No. 60950-1-07, 2nd Edition |
| Design | |
| Rack mounting | Yes |
| Form factor | 1U |
| Power | |
| AC input voltage | 100-240 V |
| AC input frequency | 50 – 60 Hz |
| Input current | 4.85 A |
| Power consumption (typical) | 51 W |
| Peak power | 56 W |
| Number of power supply units | 1 |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Operational conditions | |
| Operating temperature (T-T) | 0 – 40 °C |
| Storage temperature (T-T) | -25 – 70 °C |
| Operating relative humidity (H-H) | 5 – 95% |
| Operating altitude | 0 – 3000 m |
| Non-operating altitude | 0 – 4572 m |
| Weight & dimensions | |
| Dimensions (WxDxH) | 429 x 395 x 42.4 mm |
| Weight | 6.07 kg |
| Other features | |
| Firewall throughput | 1000 Mbit/s |
| VPN throughput | 200 Mbit/s |
