Brand : Cisco

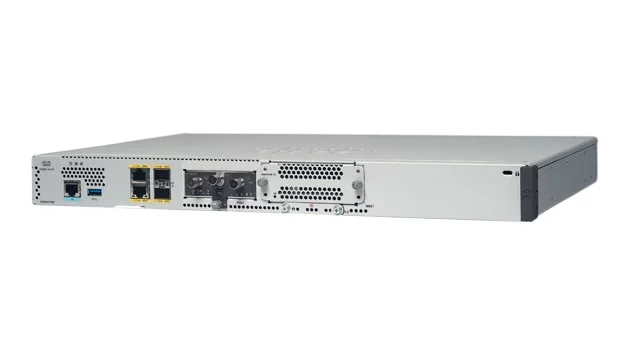

Part # C8300-1N1S-4T2X
Condition : New
Availability : In Stock
| Ethernet LAN features | |
|---|---|
| Ethernet LAN data rates | 100,1000,10000 Mbit/s |
| Network | |
| Network address translation (NAT) | Yes |
| Networking standards | IEEE 802.1Q, IEEE 802.1ag, IEEE 802.3ah |
| Ethernet LAN data rates | 100,1000,10000 Mbit/s |
| Throughput | 15.8 Gbit/s |
| Ethernet interface type | 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
| Memory | |
| Flash memory | 8192 MB |
| Internal memory | 8192 MB |
| Performance | |
| Maximum memory card size | 32 GB |
| Storage media | SSD |
| Internal storage capacity | 16 GB |
| Internal memory type | DDR4 |
| Flash memory | 8192 MB |
| Internal memory | 8192 MB |
| Mean time between failures (MTBF) | 536060 h |
| WAN connection | |
| SFP WAN | Yes |
| Ethernet WAN | Yes |
| DSL WAN | Yes |
| SIM card slot | No |
| 3G/4G USB modem compatibility | No |
| Management features | |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Ports & interfaces | |
| USB ports quantity | 2 |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| Ethernet LAN (RJ-45) ports | 4 |
| SFP+ module slots quantity | 2 |
| Protocols | |
| Switching protocols | MPLS |
| Routing protocols | BGP, EIGRP, HSRP, IP, IS-IS, LISP, MPLS, OSPF, OSPFv3, RIP, RIP-2, VRRP |
| DHCP server | Yes |
| DHCP client | Yes |
| IPv4 & IPv6 features | IPv4/IPv6 access-control list (ACL) |
| Technical details | |
| Rack mounting | Yes |
| Mean time between failures (MTBF) | 536060 h |
| LED indicators | Yes |
| Product colour | Grey |
| Security | |
| Network address translation (NAT) | Yes |
| URL filtering | Yes |
| Firewall | Yes |
| Authentication method | AAA, RSA (2048 bit), ESP-256-CBC, HMAC-SHA1, ECDSA (256/384 bit) |
| Security algorithms | 256-bit AES, 2048-bit RSA, SHA-1, SHA-2 |
| Access Control List (ACL) | Yes |
| Features | |
| Maximum memory card size | 32 GB |
| Storage media | SSD |
| Internal storage capacity | 16 GB |
| Internal memory type | DDR4 |
| Flash memory | 8192 MB |
| Internal memory | 8192 MB |
| Mean time between failures (MTBF) | 536060 h |
| Processor manufacturer | Intel |
| Design | |
| Rack mounting | Yes |
| LED indicators | Yes |
| Product colour | Grey |
| Rack capacity | 1U |
| Power | |
| Power source type | AC |
| AC input voltage | 85 – 264 V |
| Operational conditions | |
| Operating temperature (T-T) | 0 – 40 °C |
| Storage temperature (T-T) | -40 – 70 °C |
| Operating relative humidity (H-H) | 5 – 85% |
| Storage relative humidity (H-H) | 5 – 95% |
| Operating altitude | 0 – 3050 m |
| Weight & dimensions | |
| Width | 444.5 mm |
| Depth | 412.8 mm |
| Height | 43.9 mm |
