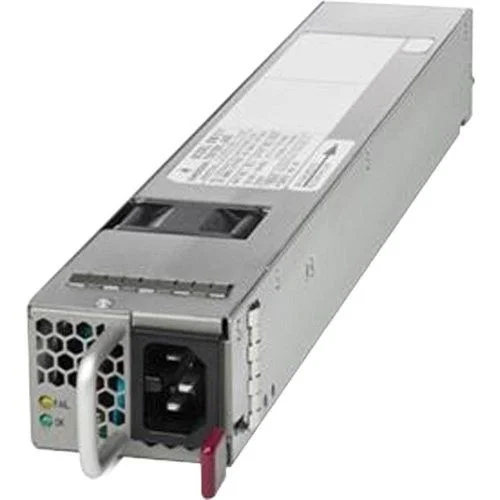

Cisco Cat 4500X 750W AC FtB 750W Grey power supply unit

Cisco Cat 4500X 750W AC FtB 750W Grey power supply unit

د.إ2,552.00

Brand : Cisco

Part no : C4KX-PWR-750AC-R

Availability : In stock

Category Switches Brand: Cisco

Product Code	C4KX-PWR-750AC-R=
AC-input type	Autoranging input with power factor correction (PFC)
AC-input voltage	100 to 240?VAC (115/230?VAC nominal) single-phase
AC-input current	11?A @ 100?VAC (max) 6?A @ 200?VAC (max)
AC-input frequency	47 to 63?Hz (50/60?Hz nominal)
Branch circuit requirement	Each chassis power supply should have its own dedicated, fused-branch circuit: For North America—15?A For International—Circuits should be sized to local and national codes All AC power supply inputs are fully isolated. Source AC can be out of phase between multiple power supplies in the same chassis, which means that PS1 can be operating from *phase?A and PS2 can be operating from phase?B.
Power supply output capacity	750 W
Power supply output	12?VDC @ 62?A 3.3?VDC @ 3?A
Output holdup time	16 ms minimum (20?ms @ 60% load)
BTU (total output)	1122?BTU/hour (nominal) 1365?BTU/hour (max)
AC-input power supply dimensions (H x W x D)	1.57 x 2.15 x 14.28?in? (3.99 x 5.46 x 36.27?cm)
Weight	2?lb (0.91?kg)
