Specifications
|
model info: |

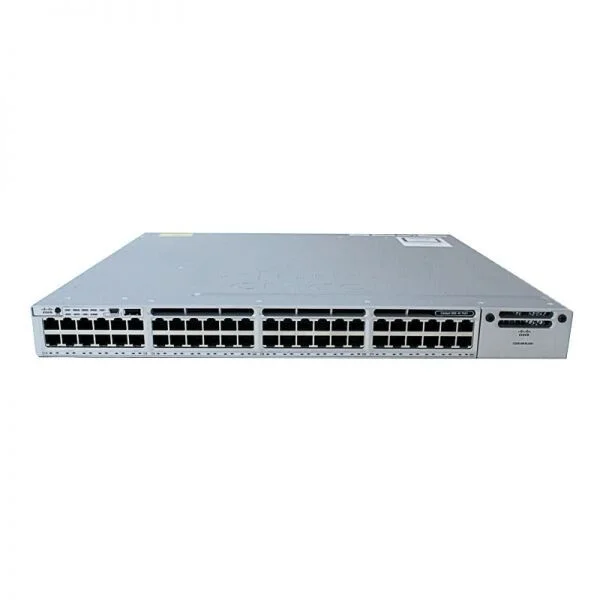

WS-C3850-48F-E |
|
enclosure type |
Rack-mountable – 1U |
|
Ports |
48 x 10/100/1000 (POE+) |
|
Network management Interface |
● Ethernet management port: RJ-45 connectors, 4-pair Cat-5 UTP cabling |
|
Available PoE Power |
800W |
|
Switching Capacity |
176Gbps |
|
Maximum stacking number |
up to 9 switches with same IOS feature set in same series |
|
Stack Bandwidth |
480Gbps |
|
Forwarding Performance |
130.95Mpps |
|
FNF (Flexible NetFlow) entries |
48,000 flows |
|
Maximum VLANs IDs |
4,000 |
|
MAC Address Table Size |
32K |
|
CPU |
Multicore CPU |
|
RAM |
4 G |
|
Flash Memory |
2 G |
