PCAP White (Worldwide) – E016808
PCAP Black (Worldwide) – E683457
IntelliTouch ZB Dual Touch Black (Worldwide) – E785229

White or Black

SAW ZB (IntelliTouch® Surface Acoustic Wave) – Dual Touch
PCAP (Projected Capacitive) – 10 Touch

17” diagonal, Active matrix TFT LCD (LED)

5:4

13.3″ x 10.64″ / 337.92mm x 270.34mm

1280 x 1024 at 75 Hz

1280 x 1024 at 60,75 Hz
1024 x 768 at 60,75 Hz
800 x 600 at 60,75 Hz
720 x 400 at 70 Hz
640 x 480 at 60,75 Hz

Horizontal: ±85° or 170° total / Vertical: ±80° or 160° total

16.7 million

LCD panel: 250 nits
IntelliTouch ZB: 225 nits
PCAP: 225 nits

20 msec

1000:1

USB

Controls (side): Menu, Up, Down, Select

Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Sharpness, Color Temperature, OSD Timeout, OSD Language, Volume, Mute, Recall Defaults

Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese

Lockouts: OSD, Power

Two external USB ports

Two 2W internal speakers

Analog VGA on Female DB-15 connector
Digital DVI on Female DVI-D, Dual-Link connector
Digital HDMI type A Receptable

Input Video Horizontal Sync frequency range: 31.5 – 80KHz
Input Video Vertical Sync (frame rate) frequency range: 56-75Hz

Monitor input power connector: Coaxial power jack (2.0mm pin outer diameter, 6.4mm barrel inner diameter)
Monitor input power signal specifications: 12.0VDC +/- 5%

Note: This monitor is sold with an AC-DC power adapter.
Adapter input connector: IEC 60320 C14
Adapter input voltage range: 100-240VAC, 50/60Hz

Monitor + AC/DC adapter
ON (100% brightness): 11W
ON (80% brightness – default): 9.7W
SLEEP: 1.3W
OFF: 0.2W

15.43″ x 8.24″ x 14.20″ / 391.9mm x 209.4mm x 360.7mm

19.65″ x 17.17″ x 8.39″ / 499mm x 436mm x 213mm

11.46 lbs / 5.2 Kg

18.7 lbs / 8.5 Kg

0°C to 40°C / 32°F to 104°F

-20°C to 60°C / -4°F to 140°F

Operating: 20% to 80%; Storage: 10% to 95% (38.7℃ max wet bulb temperature)

Touchscreen sealed to bezel; Touchscreen sealed to LCD

50,000 hours demonstrated

Tilt, remove

VESA 4-hole 75mm mounting interface on rear of unit
3-hole threaded mounting on bottom of stand
See dimensional drawings for details

2 stage DPMS
VESA DDC Plug and Play
Security lock receptacle

3-year

4 year warranty coverage – Elo P/N: E898247
5 year warranty coverage – Elo P/N: E898449
3 year warranty coverage + AUR – Elo P/N: E898648
4 year warranty coverage + AUR – Elo P/N: E894921
5 year warranty coverage + AUR – Elo P/N: E895125

Australia RCM
Canada cUL, IC
China CCC
Europe CE
United Kingdom UKCA
Japan VCCI
Korea KCC
Mexico NOM
Taiwan BSMI Mark
United States UL, FCC
International CB
RoHS, China RoHS, WEEE

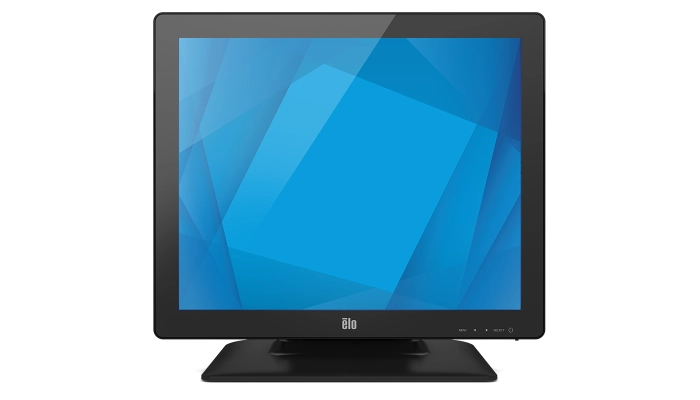

1723L Touchmonitor
Quick Install Guide
50W Power Brick, power cable
IEC 60320-C13 to NA/EU plug
DVI-D cable
VGA cable (DB-15 male to DB-15 male)
USB cable (Type A plug to Type B plug)
Audio cable
Stand base assembly
Filler Plate
HDMI cable
EEI Label

Magnetic Stripe Reader (Black MSR) – Elo P/N: E628912
North America power adapter and cable kit – Elo P/N: E005277
European & Korea power adapter and cable kit – Elo P/N: E571601
UK power adapter and cable kit – Elo P/N: E180092
China power adapter and cable kit – Elo P/N: E558862
Taiwan power adapter and cable kit – Elo P/N: E818655
Japan power adapter and cable kit – Elo P/N: E182546
Argentina power adapter and cable kit – Elo P/N: E887099
Australia power adapter and cable kit – Elo P/N: E637593
PCAP Stylus Pen – Elo P/N: E066148
