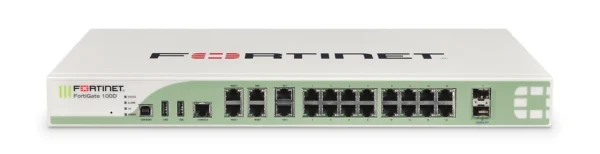

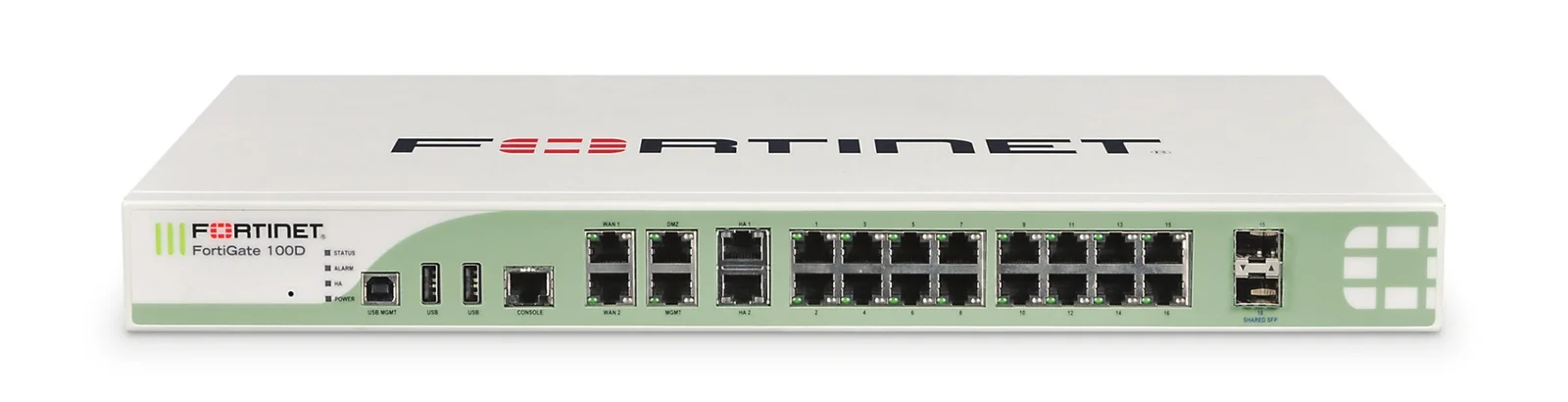

Brand: Fortinet
Part # FG-100D-BDL
Condition: New
Availability: In Stock
| Data transmission | |
|---|---|
| IPS/IDS throughput | 400 Mbit/s |
| SSL performance | 190 transactions/sec |
| HTTP performance | 500 transactions/sec |
| Firewall throughput | 2.5 Gbit/s |
| VPN throughput | 0.38 Gbit/s |
| Firewall throughput | 2500 Mbit/s |
| VPN throughput | 380 Mbit/s |
| Performance | |
| Reset button | No |
| Noise level | 46 dB |
| Concurrent users | 300 user(s) |
| Built-in processor | Yes |
| Antennas quantity | 0 |
| Heat dissipation | 215.3 BTU/h |
| Network | |
| Point-to-point protocol over Ethernet (PPPoE) | No |
| Wi-Fi | No |
| Wi-Fi standards | Not supported |
| VPN tunnels quantity | 10000 |
| Number of users | 300 user(s) |
| Quality of Service (QoS) support | No |
| Security | |
| Security algorithms | SHA-256 |
| Firewall security | UDP |
| VPN support | IPsec, SSL |
| Management features | |
| On/off switch | Yes |
| LED indicators | Yes |
| Web-based management | Yes |
| Management platform | FortiOS |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| Gigabit Ethernet (copper) ports quantity | 20 |
| Fast Ethernet (copper) ports quantity | 0 |
| Parallel ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Connectivity technology | Wired |
| USB 2.0 ports quantity | 3 |
| WAN connection | Ethernet (RJ-45) |
| VGA (D-Sub) ports quantity | 0 |
| Serial ports quantity | 1 |
| PS/2 ports quantity | 0 |
| ExpressCard slot | No |
| Ethernet DMZ ports quantity | 1 |
| Storage | |
| Total storage capacity | 32 GB |
| Design | |
| Rack mounting | Yes |
| Form factor | 1U |
| Built-in display | No |
| Power | |
| AC input voltage | 100-240 V |
| AC input frequency | 50 – 60 Hz |
| Input current | 3 A |
| Power consumption (typical) | 52.6 W |
| Redundant power supply (RPS) support | No |
| Peak power | 63.1 W |
| Number of power supply units | 1 |
| On/off switch | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 – 40 °C |
| Storage temperature (T-T) | -35 – 70 °C |
| Operating relative humidity (H-H) | 10 – 90% |
| Operating altitude | 0 – 2250 m |
| Weight & dimensions | |
| Dimensions (WxDxH) | 432 x 298 x 44 mm |
| Weight | 4.3 kg |
| Packaging content | |
| Bundled software | Fortinet FortiGuard |
| Technical details | |
| Rack mounting | Yes |
| Form factor | 1U |
| Concurrent users | 300 user(s) |
| Heat dissipation | 215.3 BTU/h |
| Processor | |
| Built-in processor | Yes |
| Display | |
| Built-in display | No |
| Hard drive | |
| Total storage capacity | 32 GB |
| Antenna | |
| Antennas quantity | 0 |
| Sound emission | |
| Noise level | 46 dB |
| Software | |
| Bundled software | Fortinet FortiGuard |
| Other features | |
| Firewall throughput | 2500 Mbit/s |
| VPN throughput | 380 Mbit/s |
