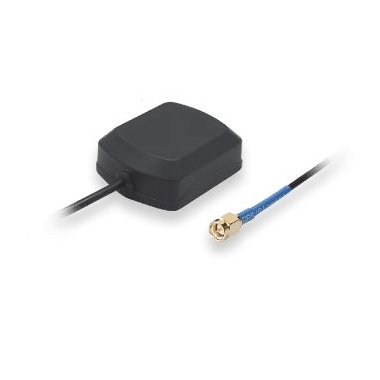

Teltonika PR1KSG30 network antenna
Brand: Teltonika
Part # PR1KSG30
Condition: New
Availability: In Stock
Technical Specifications
| Parameter | Value |
|---|---|
| Frequency Range | ~ 1575-1602 MHz (this includes standard GPS L1 and some GNSS-band signals) Teltonika Networks+4Teltonika Networks+4Axilogi Download center+4 |
| Antenna Gain | Approx 2.0 dBi DigiKey+3Teltonika Networks+3Axilogi Download center+3 |
| Polarization | RHCP (Right-Hand Circular Polarization) Teltonika Networks+2Axilogi Download center+2 |
| VSWR | ~ 1.5 (or ≤1.5 in most spec sheets) Axilogi Download center+2DigiKey+2 |
| Impedance | 50 Ω Axilogi Download center+2Mouser Electronics+2 |
| Axial Ratio | ~ 3 dB Axilogi Download center+1 |
| LNA (Low-Noise Amplifier) Gain | ~ 26 ± 2 dB Axilogi Download center+1 |
| LNA Noise Figure | ~ 1.5 dB Axilogi Download center |
| Supply Voltage for LNA | ~ 2.2-5.0 V DC Axilogi Download center |
| Current Consumption | ~ 5-15 mA Axilogi Download center |
| Cable | RG-174 cable, length ~ 3000 mm (3 meters) Axilogi Download center+2Embedded Works+2 |
| Connector | SMA Male Axilogi Download center+1 |
| Mounting Type | Adhesive mount — flat base to stick on surface. Axilogi Download center+2Embedded Works+2 |
| Operating Temperature | -40 °C to +85 °C Axilogi Download center+1 |
| Operating Humidity / Relative Humidity | Up to ~95% non-condensing (relative humidity) Axilogi Download center+1 |
