Brand: Tp-Link

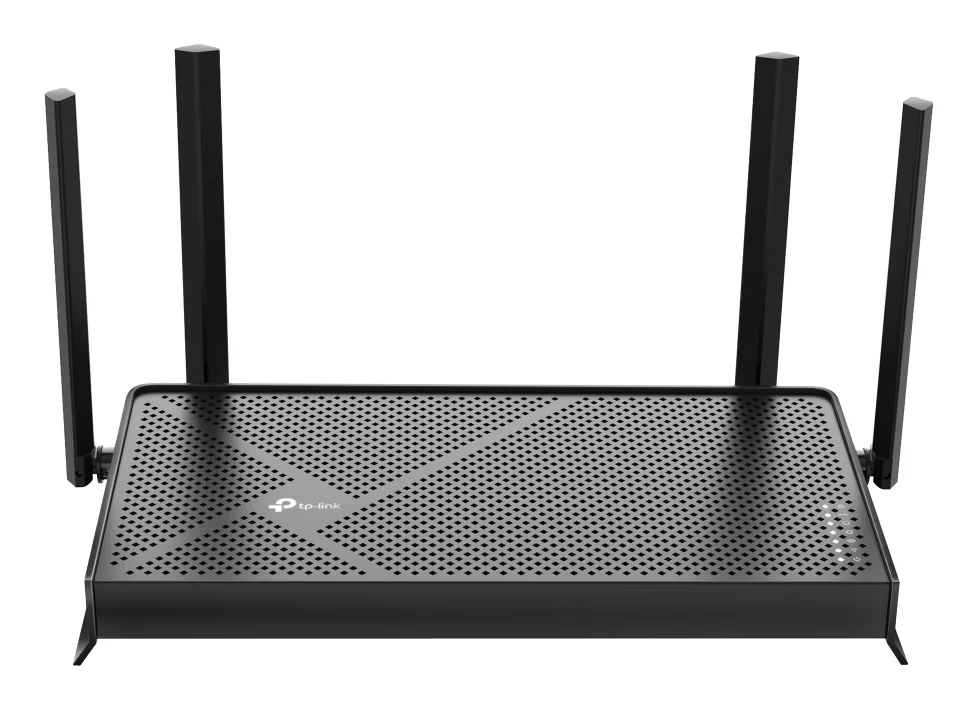

Part # ARCHER BE230
Condition: New
Availability: In Stock
| Ethernet LAN features | |
|---|---|
| Ethernet WAN | Yes |
| Ethernet LAN interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 1000,2500 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Mobile network | |
| SIM card slot | No |
| 3G/4G USB modem compatibility | No |
| Network | |
| Guest access | Yes |
| Ethernet LAN interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN | Yes |
| VPN support | • OpenVPN Server • PPTP VPN Server • L2TP VPN Server • WireGuard VPN Server |
| Port forwarding | Yes |
| Ethernet LAN data rates | 1000,2500 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Port triggering | Yes |
| Number of guest networks (5 GHz) | 1 |
| Number of guest networks (2.4 GHz) | 1 |
| Support Samba (storage) | Yes |
| Built-in FTP server | Yes |
| Media server | Yes |
| Dynamic DNS (DDNS) | Yes |
| Works with Amazon Alexa | Yes |
| Protocols | |
| DMZ support | Yes |
| Universal Plug and Play (UPnP) | Yes |
| DHCP server | Yes |
| Management features | |
| Universal Plug and Play (UPnP) | Yes |
| WPS push button | Yes |
| Web-based management | Yes |
| Reset button | Yes |
| Quality of Service (QoS) support | Yes |
| MU-MIMO technology | Yes |
| Number of data streams | 4×4 |
| Security | |
| VPN support | • OpenVPN Server • PPTP VPN Server • L2TP VPN Server • WireGuard VPN Server |
| Security algorithms | WPA, WPA-Enterprise, WPA2, WPA2-Enterprise, WPA3 |
| IP address filtering | Yes |
| Guest access | Yes |
| Firewall | Yes |
| DMZ support | Yes |
| Parental control | Yes |
| Access Control List (ACL) | Yes |
| DDoS protection | Yes |
| Performance | |
| Firmware upgradeable | Yes |
| WAN connection | |
| Ethernet WAN | Yes |
| SIM card slot | No |
| 3G/4G USB modem compatibility | No |
| WAN connection type | RJ-45 |
| Wireless LAN features | |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| WLAN data transfer rate (max) | 2882 Mbit/s |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Modulation | 4096-QAM, OFDMA |
| WLAN data transfer rate (first band) | 2882 Mbit/s |
| WLAN data transfer rate (second band) | 688 Mbit/s |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| Ports & interfaces | |
| USB port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Design | |
| Product type | Tabletop router |
| On/off switch | Yes |
| Product colour | Black |
| Certificates | |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
| Antenna | |
| Antenna design | External |
| Antennas quantity | 4 |
| Features | |
| Firmware upgradeable | Yes |
| Works with Amazon Alexa | Yes |
| Works with the Google Assistant | Yes |
| Power | |
| Power source type | AC |
| Output voltage | 12 V |
| Output current | 1.5 A |
| Operational conditions | |
| Operating temperature (T-T) | 0 – 40 °C |
| Operating relative humidity (H-H) | 10 – 90% |
| Technical details | |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
