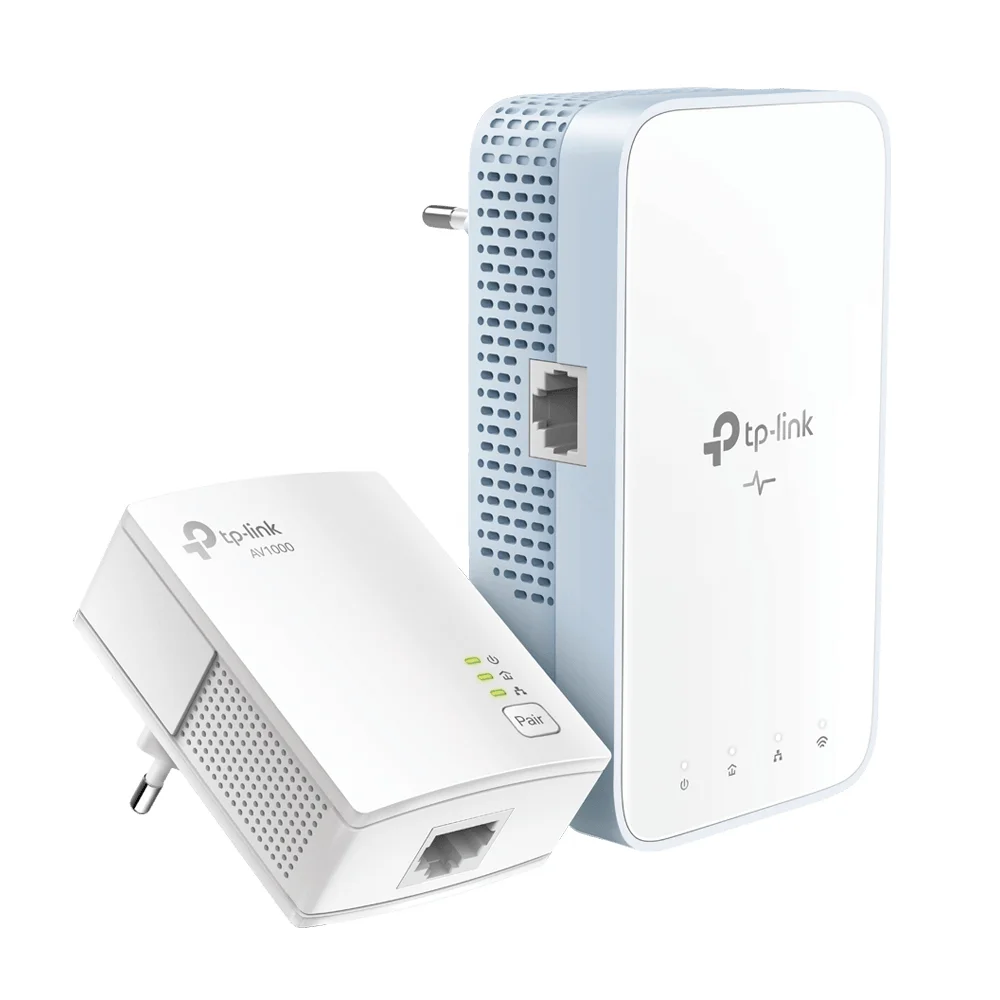

TP-Link AV1000 Gigabit Powerline ac Wi-Fi Kit
Brand: Tp-Link
Part # TL-WPA7517 KIT
Condition: New
Availability: In Stock
| Performance | |
|---|---|
| Ethernet LAN interface type | Gigabit Ethernet |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Ethernet LAN | Yes |
| WLAN data transfer rates supported | 300,433 Mbit/s |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports | 2 |
| Wi-Fi | Yes |
| Maximum data transfer rate | 1000 Mbit/s |
| Networking standards | IEEE 1901, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u |
| Power plug | Type E |
| Built-in power socket | No |
| PowerLine standard | HomePlug AV2 |
| Modulation | OFDM |
| Security algorithms | WEP, WPA-PSK, WPA2-PSK |
| Maximum operating distance | 300 m |
| Encryption button | Yes |
| Plug and Play | Yes |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Technical details | |
| Antenna type | Internal |
| Ethernet LAN interface type | Gigabit Ethernet |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Ethernet LAN | Yes |
| WLAN data transfer rates supported | 300,433 Mbit/s |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports | 2 |
| Wi-Fi | Yes |
| Maximum data transfer rate | 1000 Mbit/s |
| Networking standards | IEEE 1901, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u |
| Power plug | Type E |
| Built-in power socket | No |
| PowerLine standard | HomePlug AV2 |
| Modulation | OFDM |
| Security algorithms | WEP, WPA-PSK, WPA2-PSK |
| Maximum operating distance | 300 m |
| LED indicators | LAN, PLC, Power, Wi-Fi |
| Encryption button | Yes |
| Product colour | White |
| Plug and Play | Yes |
| Certification | CE, RoHS |
| Harmonized System (HS) code | 85171800 |
| Power | |
| Power consumption (typical) | 6.5 W |
| Design | |
| Antenna type | Internal |
| LED indicators | LAN, PLC, Power, Wi-Fi |
| Product colour | White |
| Certification | CE, RoHS |
| System requirements | |
| Mac compatibility | Yes |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8, Windows 8.1 |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 – 40 °C |
| Operating relative humidity (H-H) | 10 – 90% |
| Weight & dimensions | |
| Width | 69.5 mm |
| Depth | 35 mm |
| Height | 124.1 mm |
| Package width | 230 mm |
| Package depth | 190 mm |
| Package height | 100 mm |
| Package weight | 560 g |
| Packaging content | |
| Quick installation guide | Yes |
| Cables included | LAN (RJ-45) |
| Logistics data | |
| Harmonized System (HS) code | 85171800 |
