Brand: Tp-Link

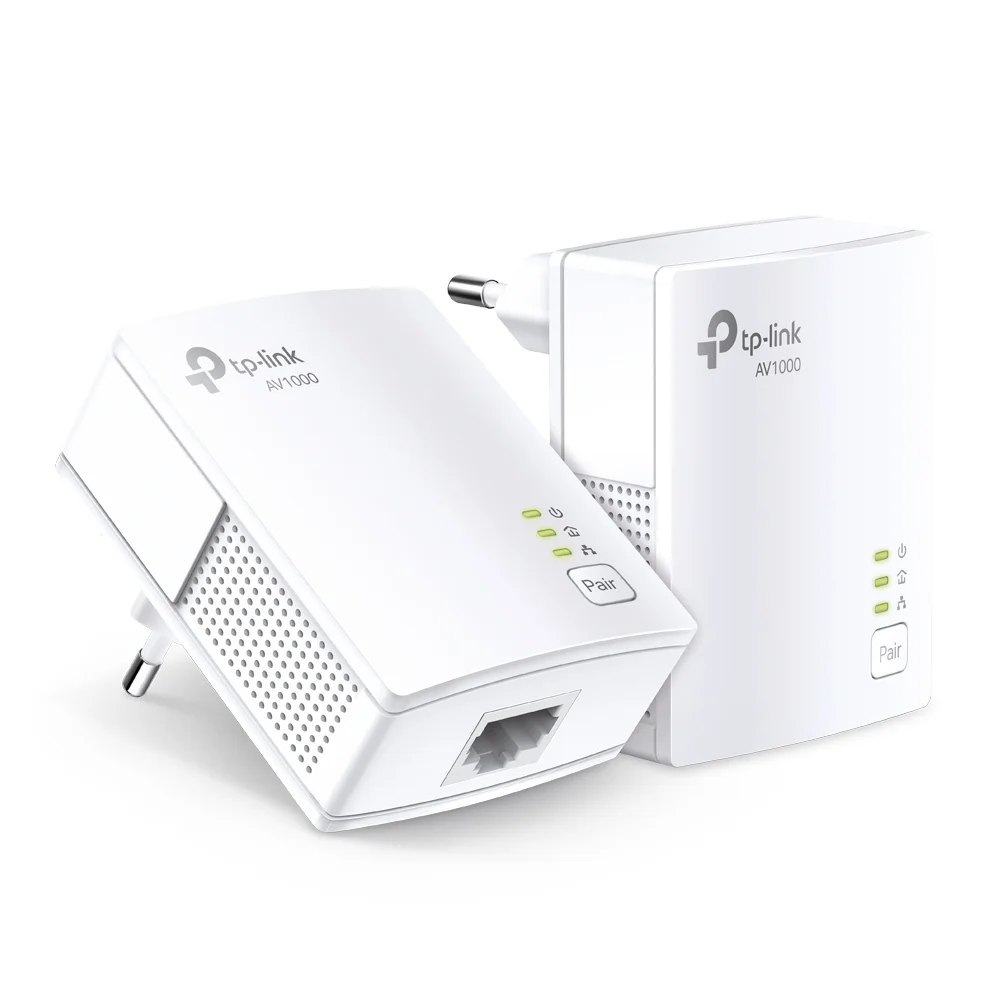

Part # TL-PA7017 KIT
Condition: New
Availability: In Stock
| Performance | |
|---|---|
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wi-Fi | No |
| Maximum data transfer rate | 1000 Mbit/s |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Power plug | Type F |
| Built-in power socket | No |
| PowerLine standard | HomePlug AV2 |
| Modulation | OFDM |
| Security algorithms | 128-bit AES |
| Maximum operating distance | 300 m |
| Plug and Play | Yes |
| Technical details | |
| Antenna type | Internal |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wi-Fi | No |
| Maximum data transfer rate | 1000 Mbit/s |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Power plug | Type F |
| Built-in power socket | No |
| PowerLine standard | HomePlug AV2 |
| Modulation | OFDM |
| Security algorithms | 128-bit AES |
| Maximum operating distance | 300 m |
| LED indicators | LAN, PLC, Power |
| Product colour | White |
| Plug and Play | Yes |
| Certification | CE |
| Harmonized System (HS) code | 85171800 |
| Compliance certificates | RoHS |
| Power | |
| Power consumption (typical) | 2.3 W |
| Power consumption (standby) | 0.5 W |
| AC input voltage | 220 V |
| AC input frequency | 50 Hz |
| Design | |
| Antenna type | Internal |
| LED indicators | LAN, PLC, Power |
| Product colour | White |
| Certification | CE |
| System requirements | |
| Mac compatibility | Yes |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 – 40 °C |
| Storage temperature (T-T) | -40 – 70 °C |
| Operating relative humidity (H-H) | 10 – 90% |
| Storage relative humidity (H-H) | 5 – 90% |
| Weight & dimensions | |
| Width | 65 mm |
| Depth | 28.5 mm |
| Height | 52 mm |
| Package width | 190 mm |
| Package depth | 136 mm |
| Package height | 100 mm |
| Package weight | 410 g |
| Packaging data | |
| Package width | 190 mm |
| Package depth | 136 mm |
| Package height | 100 mm |
| Package weight | 410 g |
| Certificates | |
| Compliance certificates | RoHS |
| Packaging content | |
| Quantity per pack | 2 pc(s) |
| Quick installation guide | Yes |
| Cables included | LAN (RJ-45) |
| Logistics data | |
| Harmonized System (HS) code | 85171800 |
