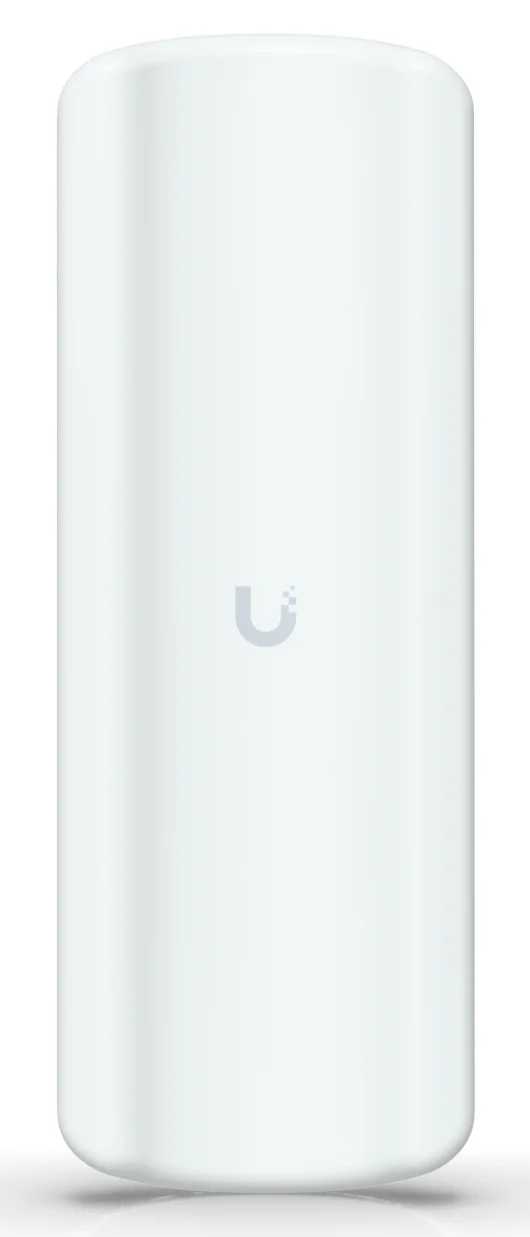

Part # UDB-PRO-SECTOR
Condition: New
Availability: In Stock
| Data transmission | |
|---|---|
| Maximum data transfer rate | 400 Mbit/s |
| Maximum transfer distance | 5000 m |
| Antenna | |
| Antenna gain level (max) | 17 dBi |
| Antenna design | Internal |
| Antenna type | 2×2 |
| Wireless LAN features | |
| Signal strength | 25 dBm |
| Antenna gain level (max) | 17 dBi |
| Wi-Fi | Yes |
| Wi-Fi band | Single-band (5 GHz) |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Antenna type | 2×2 |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 1000 Mbit/s |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ports & interfaces | |
| Ethernet LAN | Yes |
| Connectivity technology | Wired & Wireless |
| Ethernet LAN (RJ-45) ports | 1 |
| Security | |
| Security algorithms | WPA2-AES |
| Features | |
| Product type | Network bridge |
| Material | Polycarbonate (PC) |
| Product colour | White |
| Reset button | Yes |
| International Protection (IP) code | IPX6 |
| LED indicators | LAN, Power |
| Mounting type | Pole |
| Power | |
| Power consumption (max) | 6 W |
| Power source type | PoE |
| DC input voltage | 42.5 – 57 V |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Operating temperature (T-T) | -40 – 60 °C |
| Operating relative humidity (H-H) | 5 – 95% |
| Operating temperature (T-T) | -40 – 140 °F |
| Management features | |
| LED indicators | LAN, Power |
| Certificates | |
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC) |
| Technical details | |
| Material | Polycarbonate (PC) |
| Product colour | White |
| Operating temperature (T-T) | -40 – 140 °F |
| Quantity per pack | 1 pc(s) |
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC) |
| Weight & dimensions | |
| Weight | 782 g |
| Width | 129.6 mm |
| Depth | 71.4 mm |
| Height | 360.9 mm |
| Packaging content | |
| Manual | Yes |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
