Brand: Ubiquiti

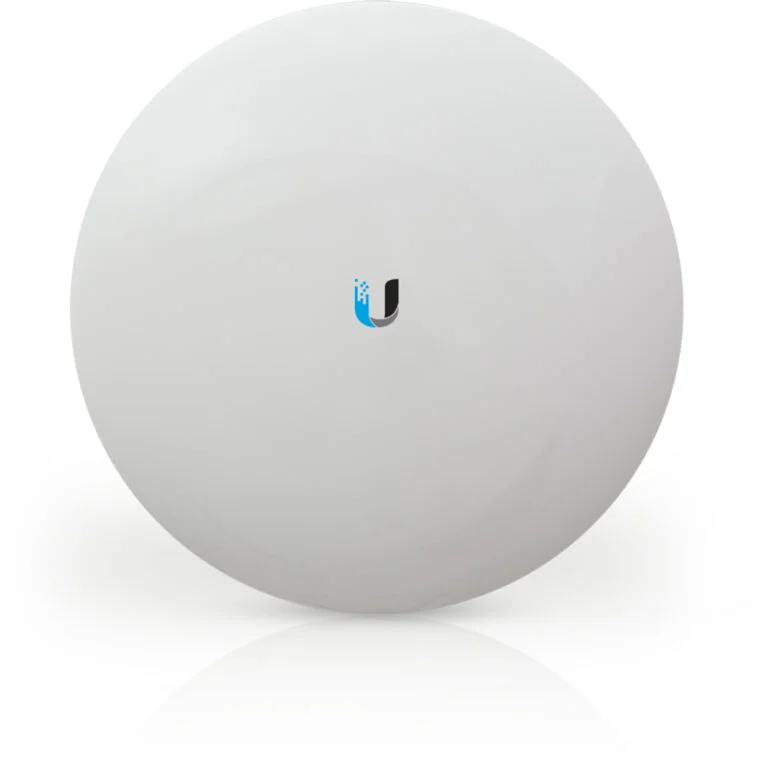

Part # NBE-5AC-GEN2
Condition: New
Availability: In Stock
| Data transmission | |
|---|---|
| Maximum data transfer rate | 450 Mbit/s |
| Maximum transfer distance | 15000 m |
| Antenna | |
| Antenna gain level (max) | 19 dBi |
| Wireless LAN features | |
| Frequency band | 5.15 – 5.875; 5.15 – 5.25; 5.25 – 5.35; 5.47 – 5.725; 5.725 – 5.85 GHz |
| Modulation | 16-QAM, 64-QAM, 256-QAM, BPSK, QPSK |
| Antenna gain level (max) | 19 dBi |
| Wi-Fi | Yes |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN interface type | Gigabit Ethernet |
| Frequency band | 5.15 – 5.875; 5.15 – 5.25; 5.25 – 5.35; 5.47 – 5.725; 5.725 – 5.85 GHz |
| Ports & interfaces | |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 2 |
| Security | |
| Security algorithms | WPA2 |
| Management features | |
| Web-based management | Yes |
| LED indicators | LAN, Power, Signal strength |
| Features | |
| Product type | Network bridge |
| Material | Plastic |
| Product colour | White |
| Reset button | Yes |
| Processor family | Atheros |
| Processor model | MIPS 74Kc |
| RAM type | DDR2 |
| Processor frequency | 720 MHz |
| Surge protection | Yes |
| LED indicators | LAN, Power, Signal strength |
| Internal memory | 128 MB |
| Mounting type | Wall/Pole |
| Power | |
| Power consumption (max) | 8.5 W |
| Power source type | PoE |
| Power over Ethernet (PoE) | Yes |
| DC output voltage | 24 V |
| DC output current | 0.5 A |
| Operational conditions | |
| Operating temperature (T-T) | -40 – 80 °C |
| Operating relative humidity (H-H) | 5 – 95% |
| Operating temperature (T-T) | -40 – 176 °F |
| Certificates | |
| Certification | CE, FCC, IC, RoHS |
| Compliance certificates | CE, RoHS |
| Technical details | |
| Material | Plastic |
| Product colour | White |
| Operating temperature (T-T) | -40 – 176 °F |
| Internal memory | 128 MB |
| Quantity per pack | 1 pc(s) |
| Harmonized System (HS) code | 85176990 |
| Compliance certificates | CE, RoHS |
| Weight & dimensions | |
| Weight | 530 g |
| Width | 189 mm |
| Depth | 189 mm |
| Height | 125 mm |
| Processor | |
| Processor family | Atheros |
| Processor model | MIPS 74Kc |
| Processor frequency | 720 MHz |
| Memory | |
| Flash memory | 8 MB |
| RAM type | DDR2 |
| Packaging content | |
| Cables included | AC |
| PoE+ Injector(s) | Yes |
| Mounting bracket(s) included | Yes |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
