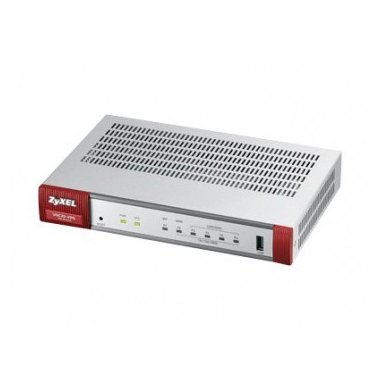

Zyxel USG40 – security appliance
Brand: Zyxel
Part # USG40-NB
Condition: New
Availability: In Stock
Key Features & Capabilities
| Capability | Detail |
|---|---|
| Firewall / Throughput | • SPI firewall throughput: approx 400 Mbps zyxelguard.com+3SmallNetBuilder+3Comx Computers+3 • UTM / IDP / AV combined throughput: around 50 Mbps (for AV + IDP) Comx Computers+2zyxelguard.com+2 |
| VPN | • VPN throughput around 100 Mbps Comx Computers+2B&H Photo Video+2 • Supports IPsec, SSL VPN, L2TP over IPsec etc. SmallNetBuilder+2zyxelguard.com+2 • Number of simultaneous IPsec tunnels: ~ 20 Comx Computers+1 • Concurrent SSL VPN users (default / max): 5 / 15 Comx Computers+1 |
| Concurrent Sessions | Up to ~ 20,000 to 50,000 simultaneous TCP sessions depending on configuration and firmware. B&H Photo Video+3SmallNetBuilder+3Comx Computers+3 |
| Ports / Network Interfaces | • WAN: 1 × Gigabit RJ-45 B&H Photo Video+1 • LAN/DMZ: 3 × Gigabit RJ-45 ports B&H Photo Video+1 • There is also an “OPT” port that can be used as either LAN or WAN/secondary LAN. SmallNetBuilder+1 • USB port (for modem failover or logging) SmallNetBuilder+2B&H Photo Video+2 • Console port (RJ-45 in this case) for local management. Comx Computers+1 |
| Wireless (for “W” variants) | The USG40W comes with built-in 2.4 GHz WiFi (802.11 b/g/n) capability. SmallNetBuilder+3Zyxel+3Comx Computers+3 The non-“W” variant (just USG40) does not have built-in WiFi. Comx Computers+1 |
| Routing / Network Features | • VLAN support (8 VLAN interfaces) Comx Computers+1 • Dynamic routing (RIP, OSPF) in addition to static routing. SmallNetBuilder • Policy-based routing / NAT, WAN failover (including via USB 3G/4G modem) SmallNetBuilder+1 • QoS / bandwidth control / traffic shaping. SmallNetBuilder+1 |
| Security & UTM Features | • Intrusion Detection & Prevention (IDP) Comx Computers+1 • Application Patrol / Application Control SmallNetBuilder+1 • Anti-Virus, Anti-Spam, Content Filtering Comx Computers+2B&H Photo Video+2 • Possibly web filtering, geo-IP blocking etc., depending on licensing / firmware. zyxelguard.com+1 |
| Management | • Web GUI, command line interface (CLI), console access. SmallNetBuilder+2Sysnet Center+2 • Support for firmware updates, logs, diagnostics, USB modem backup. SmallNetBuilder+1 • Support for managing Access Points via built-in WLAN controller in “W” variants. Zyxel+2B&H Photo Video+2 |
| Physical / Environmental | • Dimensions (USG40): ~ 216 × 143 × 33 mm (~8.50 × 5.63 × 1.30 in) Zyxel+1 • Weight: ~ 0.89 kg (≈ 1.96 lb) Zyxel+1 • Power input: 12V DC, 2.0 A max (non-W version) Zyxel+1 • Power consumption: ~ 14 W maximum under load. Comx Computers+1 • Operating temperature: 0℃ to 40℃; storage -30℃ to 70℃ Zyxel+1 • Humidity (non-condensing): 10% to 90% Zyxel+1 |
